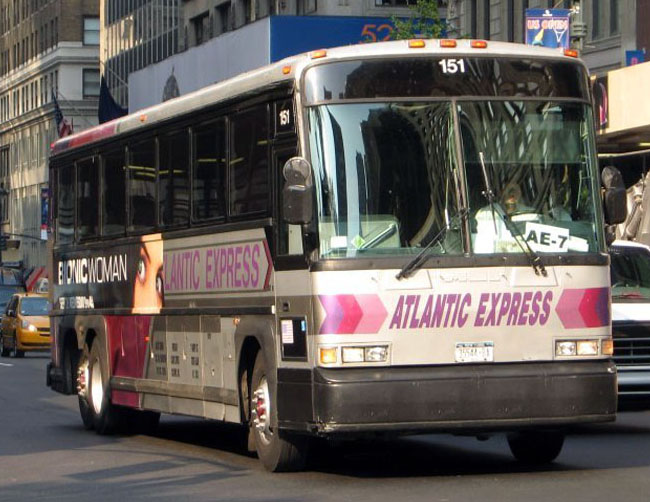

MCI 102C3

MCI 102C3

  • Overall Length: 40 ft
  • Overall Width: 102 in
  • Overall Height: Approximately 11 ft
  • Wheelbase: 285 in
  • Weight: 27,250 lb
  • Engine: Six cylinder DDC 6V-92TA two-cycle diesel developing 300 HP at 2100 RPM
  • Engine: Eight cylinder DDC 8V-71 two-cycle diesel developing 280 HP at 2100 RPM
  • Engine: Eight cylinder DDC 8V-92TA two-cycle diesel developing 400 HP at 2100 RPM
  • Transmission: Manual: Fuller T-11605D (five forward and one reverse)
  • Transmission: Automatic: Allison HT740 (four forward and one reverse)
  • Brakes: Service: Air operated two shoe service brakes are installed at each axle.
  • Brakes: Emergency: Air Bendix-Westinghouse DD-3 emergency and parking brakes at drive axle.
  • Clutch: Self-adjusting, dry disc type, 15.5″ diameter, with air assist (Fuller 5-speed trans)
  • Electrical: 24 volt negative ground (Front headlights – dual halogen – 12 volt lamps)
  • Air Conditioning: 6 cylinder compressor, driven by a self adjusting belt drive off the main engine
  • Seats: 47 or 49 passenger recliners with restroom
  • Parcel Racks: Inside parcel racks – 103.75 cu. ft.
  • Luggage Compartment: Underfloor enclosed compartments – 319 cu. ft.
  • Fuel Tank: 156 gallon capacity or 190 gallons with auxiliary
  • Suspension: Air ride type, which operates automatically and maintains a constant ride height
  • Steering: Hydraulic – power steering is standard
